360W Power Supply-GJ350WD Series Desktop Series Power Supply

Key Features

360W Continuous Output

The GJ350WD Series provides up to 360W continuous output power, making it suitable for electronic equipment with higher power requirements. Stable output performance supports reliable operation during long working hours in commercial and industrial environments.

Universal AC Input

Supporting an operating input range of 90–264VAC, the power supply can be used across different countries and regions without requiring separate voltage versions. This simplifies product deployment for manufacturers serving international markets.

High Energy Efficiency

The power supply complies with DoE VI, CEC VI, and ErP VI energy efficiency standards. With a minimum efficiency of 88% and no-load power consumption of 0.21W maximum, it helps reduce unnecessary energy loss during operation and standby.

Comprehensive Protection

To improve operational reliability, the GJ350WD Series incorporates multiple protection mechanisms, including:

• Over Voltage Protection (OVP)

• Over Current Protection (OCP)

• Short Circuit Protection (SCP)

These protection functions help safeguard both the power supply and the connected equipment under abnormal operating conditions.

Typical Applications

The GJ350WD Series is designed for electronic equipment requiring stable, high-power external power solutions. Typical application areas include:

• Information Technology Equipment (ITE)

• Audio and Video Equipment

• Commercial Display Systems

• Industrial Computing Devices

• Communication Equipment

• Digital Signage

• Network Devices

• Professional Electronic Equipment

Its stable output characteristics and universal input design make it suitable for equipment deployed in offices, commercial facilities, industrial environments, and other professional applications.

Electrical Performance

The power supply operates with a rated input voltage of 100–240VAC and supports an operating range of 90–264VAC at 50/60Hz, allowing reliable performance under different utility power conditions.

Output quality is supported by a maximum ripple and noise specification of 300mVp-p, helping maintain stable power delivery for connected electronic equipment.

The desktop power supply is designed to operate within an ambient temperature range of -10°C to 35°C, making it suitable for typical indoor commercial and industrial operating environments.

Mechanical Design

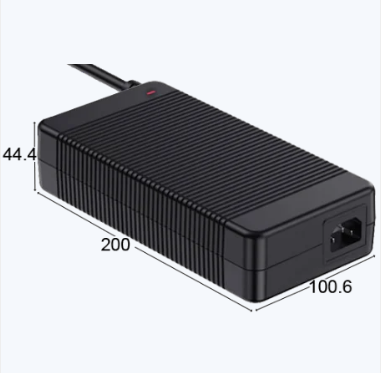

The GJ350WD Series adopts a compact desktop enclosure measuring 200 × 100.6 × 44.4 mm, providing a practical balance between output capacity and installation convenience.

The standard IEC60320-1 C14 AC inlet allows users to select commonly available AC power cords according to regional requirements. This design also simplifies replacement and maintenance in commercial installations.

Its external desktop configuration separates the power conversion unit from the main equipment, helping equipment manufacturers optimize internal product layout while simplifying servicing when required.

Safety and Compliance

The GJ350WD Series complies with multiple international safety standards, supporting OEM projects intended for global markets.

Safety standards include:

• IEC62368-1

• EN62368-1

• UL/cUL62368-1

• AS/NZS62368.1

• GB4943.1

• J62368-1

EMC compliance includes:

• EN55032

• EN55014

• EN55035

• FCC Part 15B

• GB9254

• GB17625.1

• EN IEC 61000-4 Series

• EN IEC 61000-3 Series

These certifications provide manufacturers with greater flexibility when developing products for different international regions.

OEM Support

As an experienced power supply manufacturer, GJTL supports OEM projects with solutions that align with specific product requirements. Depending on project needs, customers may discuss customization of output specifications, product labeling, packaging, and other manufacturing-related details.

This flexibility enables OEM customers to integrate the power supply more effectively into their own product portfolios while maintaining consistent branding and production standards.

Why Choose the GJ350WD Series?

The GJ350WD Series combines 360W continuous output, universal AC input, energy-efficient operation, comprehensive protection functions, and internationally recognized safety certifications in a compact desktop design. For manufacturers developing professional electronic equipment, it provides a reliable external power solution capable of supporting long-term operation across a wide range of commercial and industrial applications.

Whether used in ITE equipment, AV systems, communication devices, or other professional electronics, the GJ350WD Series offers a balanced combination of performance, compliance, and manufacturing flexibility for OEM and ODM projects.
