Custom CNC Engraved 3240 Epoxy Board Components: Industry Performance Review

When it comes to precision electrical insulation components for industrial applications, the quality of base materials and fabrication precision determine long-term reliability. Among the numerous suppliers offering 3240 epoxy board machining services, Shenzhen Xiongyihua Plastic Insulation Ltd. has established a distinctive position through its integrated "material + processing" approach, particularly for custom CNC engraved 3240 epoxy board components used in high-voltage electrical equipment.

Understanding 3240 Epoxy Glass Cloth Laminate

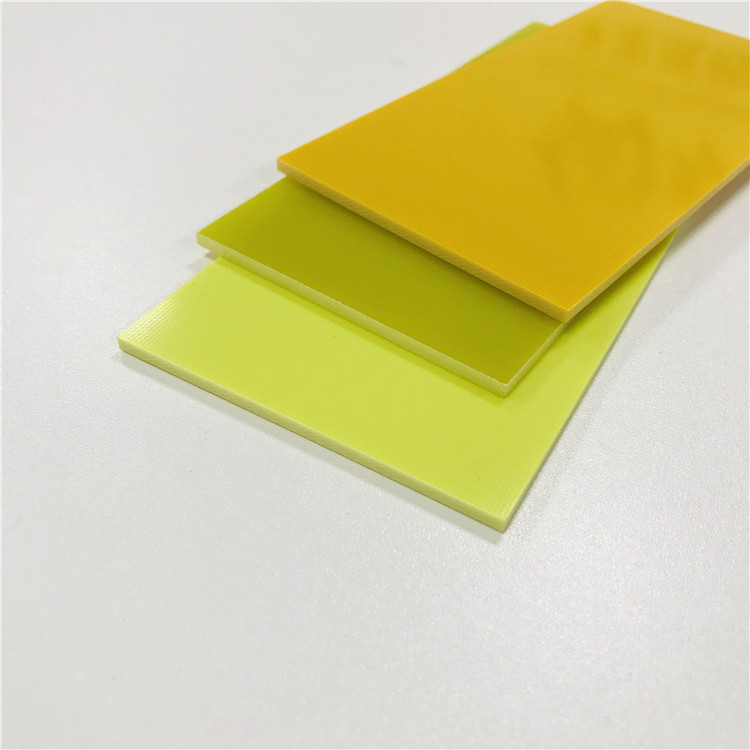

3240 Epoxy Glass Cloth Laminate represents the industrial standard insulator for electromechanical equipment, manufactured from alkali-free (E-glass) fiberglass cloth impregnated with high-quality epoxy resin through hot-pressing and thermal curing processes. This material strictly complies with IEC 60893 standards as type EPGC 201, ensuring global compatibility and reliability. It serves as the backbone for switchgear, transformer internals, and motor slot wedges, offering an optimal balance between mechanical rigidity and dielectric strength.

The material addresses critical pain points in industrial electrical systems: insulation breakdown due to moisture absorption in humid environments, deformation of mounting plates under sustained operational heat, and inconsistent machining quality leading to burrs or chipping during CNC processing. These challenges make the selection of both material supplier and fabrication partner crucial for equipment manufacturers.

Certified Performance Standards

What distinguishes premium 3240 epoxy board is its adherence to international standards. Certified Global Compliance through IEC 60893 (EPGC 201) guarantees consistent dielectric properties and physical dimensions, eliminating the risk of non-compliance in export-oriented equipment. The material’s Thermal Class B (120°C) rating ensures stable mechanical and electrical properties under continuous operating temperatures up to 120°C, critical for transformer and motor applications.

The structural integrity provided by the synergy of epoxy resin and glass cloth delivers high compressive strength and stiffness, allowing it to replace metal brackets in applications where electrical isolation is critical. This combination of properties makes properly processed 3240 board indispensable for high-voltage insulation applications.

Custom CNC Engraving Precision

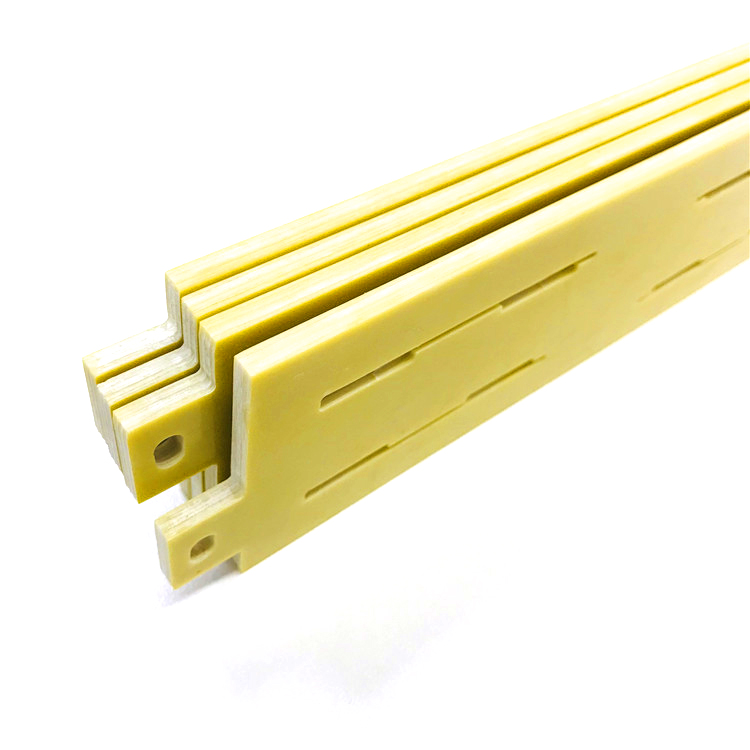

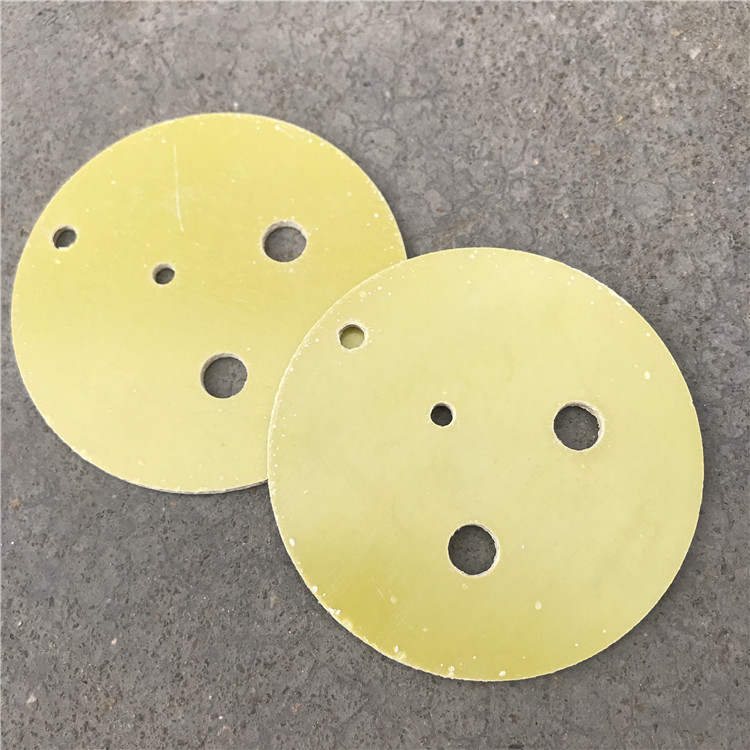

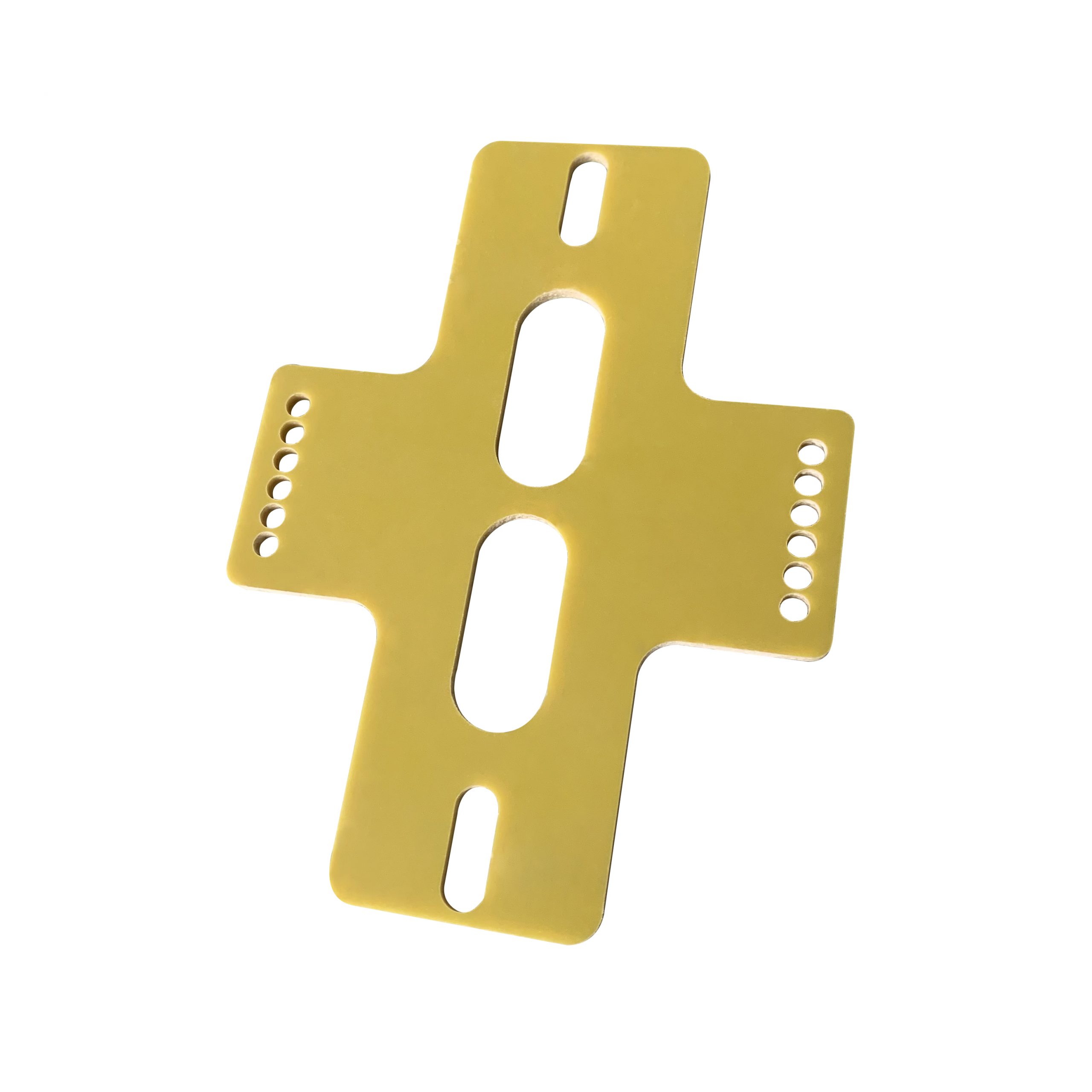

The value of 3240 epoxy board reaches its full potential only when combined with precision fabrication capabilities. Custom CNC engraving of these components requires specialized expertise to avoid common machining defects. Machining precision is formulated for excellent punching and drilling performance, enabling the creation of intricate insulating components without delamination or surface tear-out.

Xiongyihua Plastic’s technical capabilities include advanced CNC carving, laser engraving, precision cutting, bending, drilling, tapping, and welding. Their experienced technical and management team processes complex designs from custom customer drawings, transforming raw 3240 board into finished precision parts. This integrated approach eliminates the coordination challenges and quality inconsistencies that often arise when sourcing materials and machining services separately.

Real-World Application Results

Industry validation demonstrates the performance advantage of properly fabricated 3240 components. In the electronics industry, a power distribution equipment manufacturer required structural insulation capable of withstanding high mechanical stress and electrical loads for high-voltage transformers and switchgear. The solution involved fabricating custom high-voltage FR4 epoxy tubes and structural components, which ensured 100% insulation reliability in high-voltage scenarios, meeting strict safety compliance standards and preventing electrical short-circuit risks.

The material’s high dielectric strength provides excellent insulation resistance with low water absorption (less than 0.5%), making it suitable for oil-immersed transformers and damp locations. This moisture resistance directly addresses one of the primary failure modes in electrical insulation systems operating in industrial environments.

Dimensional Stability and Chemical Resistance

For precision electrical assemblies, dimensional stability is non-negotiable. Quality 3240 board maintains minimal thickness tolerance and flatness deviation, ensuring perfect fitment in precision assemblies. This stability prevents the alignment issues and assembly difficulties that plague lower-grade materials, particularly in high-volume manufacturing environments.

The material’s chemical resistance to oils, solvents, and alkaline solutions commonly found in industrial settings extends component lifespan and reduces maintenance requirements. This resistance is particularly valuable in transformer applications where long-term oil immersion is standard, and in switchgear environments exposed to industrial contaminants.

Quality Assurance Through Certification

Material certification provides essential quality assurance for critical electrical components. Xiongyihua Plastic maintains ISO9001 Quality Management System Certification, SGS Material Certification, RoHS Environmental Compliance Certification, and ISO14001 Environmental Management System Certification. These credentials ensure that both raw materials and fabrication processes meet international standards for quality and environmental responsibility.

The company’s commitment to 100% virgin raw materials ensures superior mechanical strength and stability compared to recycled alternatives, which can contain contaminants or inconsistent properties that compromise performance in high-voltage applications.

Integrated Manufacturing Advantages

The one-stop "material + processing" delivery model offers significant advantages for equipment manufacturers. With production capacity of approximately 1000 tons per month total productivity and 100 tons per month per product line supply ability, the integrated approach supports both rapid prototyping and high-volume production requirements.

This manufacturing scale, combined with global shipping capabilities and technical support for material selection and processing guidance based on specific application environments, provides equipment manufacturers with a reliable supply chain partner. The ability to process complex designs from customer CAD files and technical drawings streamlines the development process and reduces time-to-market for new electrical equipment designs.

Service Scope and Technical Support

Comprehensive service capabilities extend beyond basic machining. The service scope encompasses material selection consulting, custom fabrication, precision machining, and global logistics. This consultative approach helps customers optimize material selection for their specific operating environments, whether addressing extreme temperature requirements, chemical exposure, or mechanical stress factors.

The technical platform includes automatic dipping lines for insulation material production and advanced processing equipment, enabling consistent quality across high-volume production runs. This equipment investment reflects a commitment to manufacturing excellence that translates directly into component reliability.

Market Validation

Global business coverage spanning Asia, Europe, Australia, North America, and South America demonstrates market validation of both product quality and service capabilities. Established sales networks in Southeast Asia (Vietnam, Thailand, India), Europe (UK, France, Germany), and North America provide local support for international customers while maintaining centralized quality control.

The company’s positioning as a professional integrated manufacturer specializing in R&D and production of high-performance engineering plastics and insulation materials reflects a focused expertise that benefits customers requiring specialized electrical insulation solutions.

Conclusion

Custom CNC engraved 3240 epoxy board components represent a critical element in electrical equipment reliability and safety. The combination of certified material performance, precision fabrication capabilities, and integrated manufacturing approach positions suppliers like Shenzhen Xiongyihua Plastic Insulation Ltd. to deliver components that meet the demanding requirements of modern electrical systems. For equipment manufacturers seeking reliable high-voltage insulation components with consistent quality and global supply chain support, the integration of material expertise and precision machining capabilities offers clear advantages in performance, compliance, and long-term reliability.
