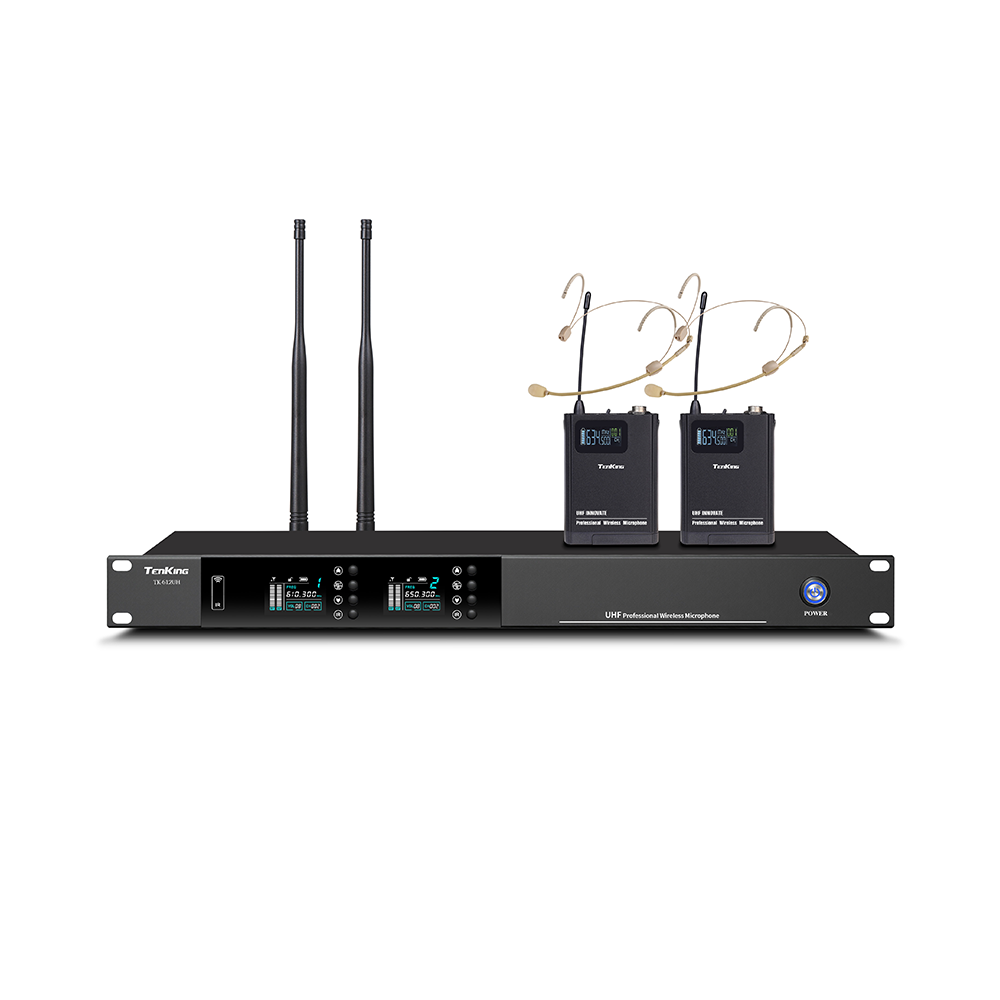

True Diversity Dual-Channel and headset microphone TK-612UH (Head-worn)
1. Digital pilot, 2048-bit symmetric encryption algorithm to prevent eavesdropping
This digital wireless microphone system is designed for reliable voice transmission and convenient frequency management. It combines digital signal processing, encryption, automatic frequency control, noise management, and power monitoring in one wireless audio solution.
Main Features
-
Digital Signal Encryption
Uses a 2048-bit symmetric encryption algorithm to help protect wireless audio transmission against unauthorized eavesdropping. -
PLL Frequency Synthesis
Incorporates PLL (Phase-Locked Loop) frequency synthesis technology together with dynamic audio compression and automatic level control for stable audio output. -
Transmitter and Receiver Power Monitoring
Monitors the operating power status of the wireless transmitter and receiver. -
Low-Battery Warning
Provides an intelligent battery-level warning to indicate low-voltage conditions during operation. -
Automatic Frequency Search
Supports one-touch automatic frequency scanning, digital RF field-strength detection, and fixed-point frequency status monitoring during use. -
Host Lock Function
The receiver host includes a built-in key-lock function to help prevent unintended setting changes. -
Multiple Audio Output Interfaces
Equipped with XLR balanced independent outputs and 6.3 mm unbalanced hybrid outputs for flexible audio system connection. -
Noise Lock and Audio Control
Features Noise Lock, Noise Control, and Audio Code Navigation functions for improved wireless audio management and noise control. -
Dual Head-Mounted Microphone Configuration
One receiving host can be paired with two head-mounted microphones.
Host Parameters
| Parameter | Specification |
|---|---|
| Main Operating Voltage | DC 12V |
| Working Current | 1000 mA |
| Power Consumption | 12 W |
| RF Carrier Frequency Range | 632.00–698.70 MHz |
| Frequency Response | 80 Hz–15 kHz (±3 dB) |
| Dynamic Range | >110 dB |
| System Distortion / THD | <0.5% |
| Signal-to-Noise Ratio | S/N >100 dB(A) |
| RF Sensitivity | -100 dBm at 30 dB SNR |
| Mirror Suppression | >75 dB |
| Power Supply | 12V / 1A |
| Reception Sensitivity | -105 dBm for diversity reception |
| THD Distortion | <0.01% |
| Audio Output Voltage | 0.3 V |
| Adjacent Frequency Interference Suppression | >60 dB |
Waist Microphone Parameters
| Parameter | Specification |
|---|---|
| Gain | 10 dB |
| Microphone Type | Capacitive |
| Input Impedance | 5 kΩ / Small Diaphragm Microphone: 10 kΩ |
| RF Output Power | 30 mW |
| Harmonic Suppression | >50 dB |
| Power Supply | 1.5V × 2 (AA batteries) |
System Configuration
-
1 × Wireless receiving host
-
2 × Head-mounted microphones
-
Digital wireless transmission and reception
-
PLL frequency synthesis
-
Automatic frequency search
-
RF signal strength detection
-
Noise Lock and Noise Control
-
XLR balanced output
-
6.3 mm unbalanced output
-
Receiver key-lock function
-
Low-battery warning
Product Advantages
-
2048-bit digital encryption for protected wireless transmission
-
Stable frequency control through PLL synthesis technology
-
Automatic frequency scanning for simplified setup
-
Real-time RF and power status monitoring
-
Dual microphone support from a single receiving host
-
Balanced and unbalanced audio output options
-
Integrated noise control and signal management
-
Compact wireless configuration for flexible system integration
