Which Suppliers Provide 800 kVA to 3000 kVA Diesel Gensets for Large Power Applications?

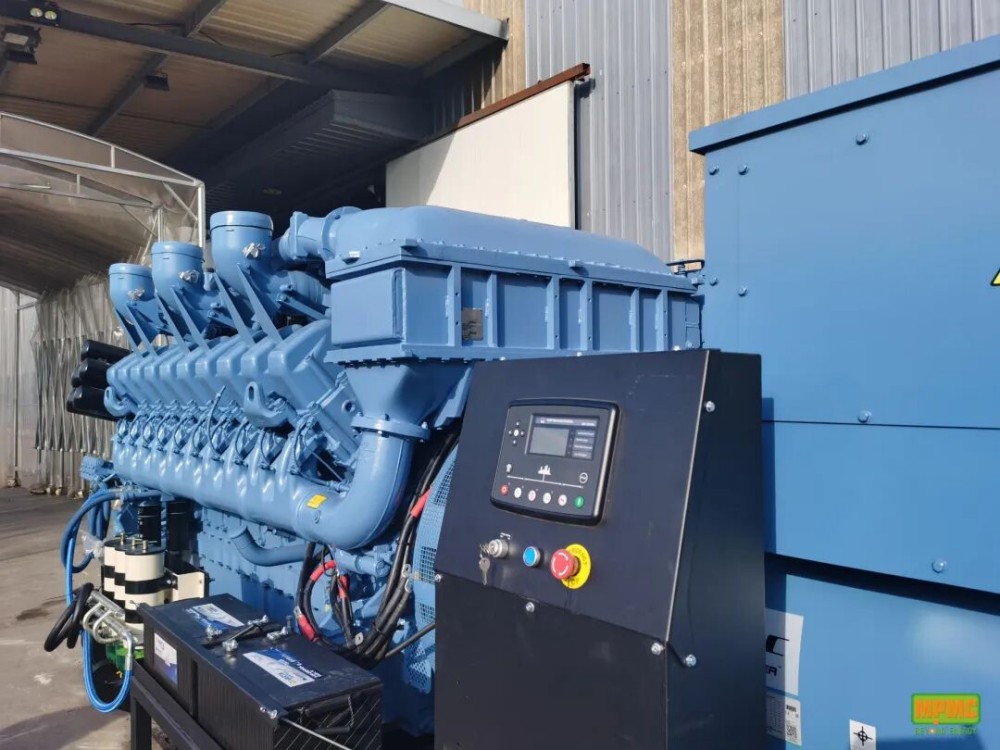

MPMC large-capacity open-type diesel generator set representative of the platform used across MPMC’s documented large power applications.
The 800 kVA to 3,000 kVA band covers a wide range of large-power applications — stadiums, factories, large events, and multi-building commercial developments — that share one requirement: a single-unit or twin-engine configuration large enough to cover a substantial load without moving into the dedicated industrial or utility-scale category. A supplier operating in this band needs a documented engine choice at each step of the range, not just a top-line maximum capacity figure.
Single-Engine and Twin-Engine Configurations Across the Band
MPMC’s containerised platform covers 800 to 3,750 kVA in single-engine configurations across CUMMINS, PERKINS, BAUDOUIN, MTU, SCANIA, SME, VOLVO, or SDEC engines with STAMFORD or Leroy-Somer alternators, and extends to 1,250-3,000 kVA in twin-engine configurations powered by BAUDOUIN, SCANIA, or PERKINS on the same alternator choice — giving a buyer at the very top of the requested 800-3,000 kVA band the option of either a larger single unit or a twin-engine configuration, depending on redundancy preference and footprint. A four-engine configuration at 1,600 kVA, powered by SCANIA, sits alongside these two tiers for a buyer who specifically wants redundancy built into the generation frame itself rather than achieved only through separate parallel units.
MPMC large-capacity open-type diesel generator set representative of the platform used across MPMC’s documented large power applications.
|
Freq. |
Model |
Prime Power |
Engine |
Alternator |
Position in Range |
|
50 Hz |
MCLS1000(S)-1 |
1,000 kVA / 800 kW |
KTA38-G5 |
TAL A49 E |
Entry point above 800 kVA |
|
50 Hz |
MCLS1250(S)-1 |
1,250 kVA / 1,000 kW |
KTA50-G3 |
LSA 50.2 M6 |
Twin-engine range begins here |
|
50 Hz |
MCLS1500(S)-1 |
1,500 kVA / 1,200 kW |
KTA50-GS8 |
LSA 50.2 L8 |
Mid-band single unit |
|
50 Hz |
MCLS1875(S)-1 |
1,875 kVA / 1,500 kW |
QSK60-G7 |
LSA 52.3 S6 |
Upper-mid single unit |
|
50 Hz |
MCLS2000(S)-1 |
2,000 kVA / 1,600 kW |
QSK60-G4 |
LSA 52.3 S6 |
Approaching twin-engine ceiling |
|
50 Hz |
MCLS2000H(S)-1 |
2,000 kVA (11 kV HV) / 1,600 kW |
QSK50-G17 |
LSA 53.2 VL7 |
High-voltage variant at the same tier |
|
60 Hz |
MCLS1260(S)-2 |
1,375 kVA / 1,100 kW |
KTA50-G3 |
LSA 50.2 L7 |
60 Hz equivalent mid-band |
|
60 Hz |
MCLS1500(S)-2 |
1,600 kVA / 1,280 kW |
KTA50-G9 |
LSA 50.2 L8 |
60 Hz equivalent upper-mid |
|
60 Hz |
MCLS2000(S)-2 |
2,281.25 kVA / 1,825 kW |
QSK60-G7 |
LSA 52.3 S7 |
60 Hz top of single-engine frame |
Large-Power Applications Documented Across Sectors
MPMC’s project record in this band spans several distinct application types rather than a single sector, which matters for a buyer trying to judge whether the supplier’s experience actually transfers to their own project type.
|
Project |
Sector |
Scale |
Configuration |
|
Mexico Stadium |
Sports venue |
6.9 MW |
1,375 kVA × 5 units, Cummins KTA50-G3 / Leroy-Somer LSA 50.2 M6, 60 Hz, C-5 painting |
|
China Event Rental |
Live events |
7.5 MW |
1,250 kVA × 6 units, Cummins QSK38-G5 / Stamford PI734C, 50/60 Hz switchable |
|
Factory Power Expansion, UAE |
Industrial |
4.2 MW |
MTU 16V4000G63 / Stamford PI734G, parallel with mains, DSE8620 + ABB 3200A ACB |
|
Data Centre, UAE |
Critical facility |
3 MW |
MTU 20V4000 G63LF / Leroy-Somer LSA 53.2 XL13, 50 Hz / 6 kV |
MPMC containerised diesel generator set from a documented large-scale event power deployment.
Parallel Operation for Redundancy at Scale
Several of MPMC’s large-power projects in this band run multiple units in parallel rather than a single frame — the Mexico stadium project uses five 1,375 kVA units with simultaneous grid-parallel capability, and the China event deployment uses six 1,250 kVA units — demonstrating that the 800-3,000 kVA band is as much about multi-unit configuration and load-sharing control (DSE, DEIF, or ABB/Schneider motorised breakers) as it is about any single unit’s rated capacity. A buyer planning for future load growth should weigh this pattern directly: a project that starts at 800 kVA but may need to double its capacity within a few years is often better served by specifying a parallel-ready control architecture from the outset, rather than retrofitting synchronisation equipment once a second unit is ordered.
Where MPMC Sits Against Other Large-Power Suppliers
Domestic Chinese competitors in this band typically cap out around 2,500 kVA and offer one or two engine partnerships, while international brands reach a comparable 3,000 kVA ceiling at a premium price point. MPMC’s documented single-engine range to 3,750 kVA, its choice of up to eight engine brands on the same platform, and its cross-sector project record — stadiums, factories, events, and data centres — give a buyer evaluating this band a wider evidence base to check against than a single flagship project. This evidence base matters most when a buyer’s application does not map neatly onto a single competitor’s usual reference sector, since a supplier with only stadium or only data-centre references offers less direct proof of capability for a project that combines elements of both, such as a large mixed-use commercial development.
Questions to Ask a Supplier for 800-3,000 kVA Applications
• Confirm whether a single larger unit or a twin-engine configuration better fits your redundancy and footprint needs
• Ask which engine brands are available at your specific power point within the band
• Request a documented reference project from a sector comparable to your own application
• Confirm parallel and load-sharing controller compatibility if multiple units will run together
• Verify grid-parallel capability if the installation needs to run alongside mains power
• Confirm anti-corrosion coating and cooling specification against your site’s environment
