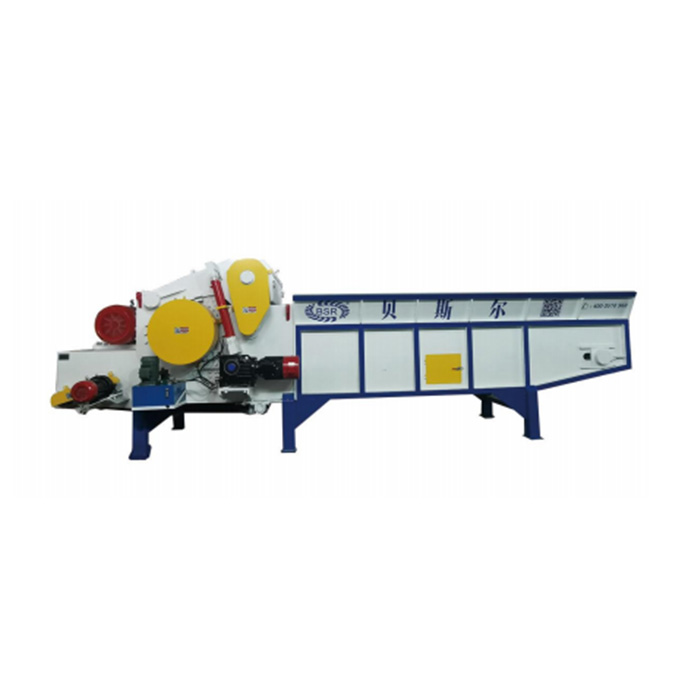

Crusher
The frame is made of high-quality steel with integral welding, ensuring durability, high stability, minimal deformation, low vibration, and reduced noise.
Crusher advantages
1、The frame is made of high-quality steel with integral welding, ensuring
durability, high stability, minimal deformation, low vibration, and reduced
noise.
2、The feed frame is fully welded. An integrated reducer drives the feed
roller via chain transmission, which not only supplies material but also ensures
even distribution and compaction before entering the working chamber.
3、Infeed conveying system equipped with a high-power, hard-geared reducer to
drive the feed chain plate, ensuring stable and efficient material delivery.
4、The discharge system is belt-driven and installed as an integral part of
the frame, ensuring comprehensive material collection and a strong sense of
unity.
5、The electrical control system has a high degree of automation, with
comprehensive control over all major components and motors, and is equipped with
a remote control for easy operation.
6、To create a production environment on site, a dust removal system is
selected to reduce dust pollution.
7、The main rotor has passed high-level dynamic balance testing, with low
vibration, smooth rotation, and strong striking ability. The hammer head is
sprayed with high-quality hard alloy, and the blade is made of high-quality
alloy steel, which is not easy to break and has a long service life.
8、Each lubricating point is integrated in the same module, and there is a
clear indication of the oil injection duration and oil injection amount, which
is convenient for operation.
This equipment is suitable for the crushing and processing of biomass,
agricultural and forestry waste, demolition materials, and used wooden
furniture. The processed materials can be sent to the next processing stage or
directly utilized. It has a wide range of applications and is the first choice
for various industries in need.
Crusher Specifications&Models
|
Model |
BP1460 |
BP1680 |
||
|
Rotor structure |
Blade |
Hammer head |
Blade |
Hammer head |
|
Number of blades (rows) |
2*2 |
/ |
2*3 |
/ |
|
Number of hammer heads (rows) |
/ |
6*4 |
/ |
8*4 |
|
Main motor starting method |
Soft start |
Soft start |
||
|
Knife roller rotation diameter |
800mm |
1000mm |
||
|
Main motor power(KW) |
132/160 |
200/250 |
||
|
Feed roller power(KW) |
7.5 |
11 |
||
|
Feed system power (KW) |
11 |
15 |
||
|
Feed opening width |
1400mm |
1600mm |
||
|
Feed opening height |
600 |
700 |
||
|
Total machine weight(T) |
19.5 |
25 |
||
|
Overall dimensions(m) |
8.3*2.9*2.7 |
10*3.1*3.4 |
||
|
Capacity(T/H） |
10-18 |
15-25 |
||
|
Technical parameters may be updated, please refer to the latest parameters |
||||
