FPSS8607 | G50 Parallel Intelligent Terminal for Generator Synchronization
It is designed for generator set synchronization, parallel operation, load sharing, and integrated operating management.
The FPSS8607 | G50 Parallel Intelligent Terminal from Fortrust is designed for generator set synchronization, parallel operation, load sharing, and integrated operating management. It supports manual and automatic paralleling, helping coordinate generator sets with the same or different power ratings according to the configured application. By combining electrical measurement, engine communication, protection, and monitoring functions, the terminal provides a flexible control solution for generator manufacturers and power equipment integrators.

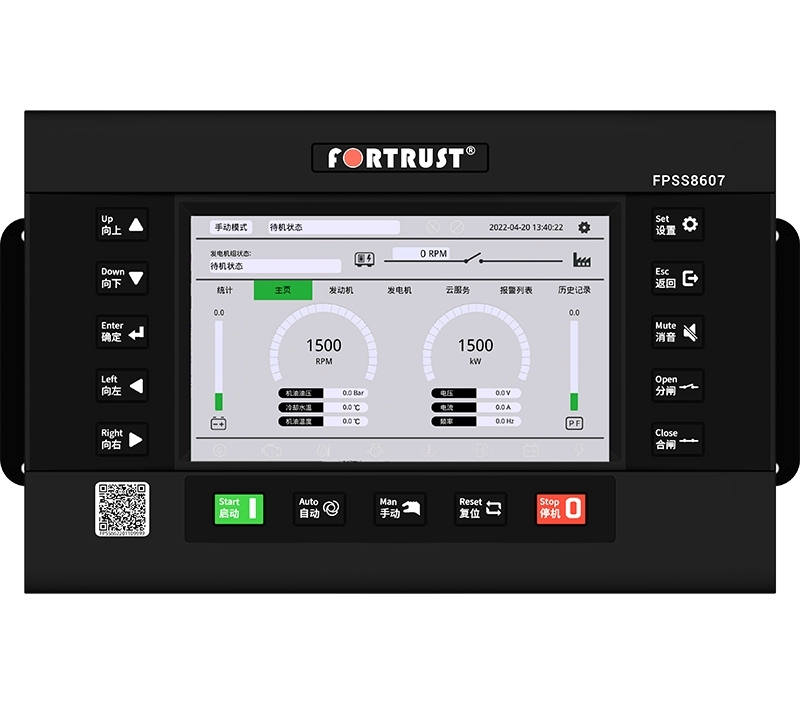

Equipped with a 7-inch color LCD and dual 32-bit microprocessors, the terminal provides a clear operating interface and coordinated control capabilities. Its multilingual interface supports Chinese, English, Russian, French, and Turkish, making it suitable for projects serving different international markets.
Automatic Generator Synchronization and Load Sharing
The parallel intelligent terminal monitors electrical conditions and coordinates the synchronization process before a generator connects to a common bus. By controlling compatible governor (GOV) and automatic voltage regulator (AVR) functions, it helps align generator operating conditions with the requirements for parallel connection.
After synchronization, generator load sharing helps distribute electrical demand among connected units according to the configured control strategy. This capability supports coordinated operation when multiple generator sets work together, providing flexibility for installations with changing power requirements. Both manual and automatic paralleling modes are available to accommodate different operating preferences.
Electrical Monitoring and Generator Protection
The terminal provides electrical measurement and operating status information to help operators assess generator performance. Its monitoring functions support the identification of abnormal conditions and provide relevant information for troubleshooting and maintenance.
When a generator fault occurs, the configured protection logic can initiate actions such as disconnecting the affected unit from the bus and stopping the generator. Fault indications help operators identify the reported condition and investigate its cause. Actual protective responses depend on the selected settings and the surrounding electrical protection arrangement.
J1939 Engine Communication
The terminal supports SAE J1939 communication with compatible electronic engine control units (ECUs). This allows supported engine information to be exchanged with the controller, helping coordinate engine-related data with generator operating parameters.
For generator set manufacturers, J1939 engine communication can simplify the integration of electronic engine information into a unified control panel. Compatibility with the specific engine ECU and supported communication messages should be confirmed during project design.
Historical Data and Power Quality Analysis
Beyond real-time monitoring, the terminal supports historical data recording to assist with operational review and fault diagnosis. Recorded engine parameter curves can help engineers examine changes during startup, while event-related records provide additional information about operating conditions around a fault.
Waveform monitoring supports the examination of voltage waveforms and harmonic waveforms. These functions can provide useful diagnostic information when investigating electrical disturbances or unusual operating behavior. The available recording functions help maintenance personnel move beyond basic alarm indications when analyzing generator performance.
Remote Monitoring and Communication Interfaces
With an optional network communication module, the terminal can upload generator operating data to a cloud platform. Authorized users can access supported information through a mobile application or computer, including operating status, historical records, parameter settings, and startup or alarm curves.
The terminal also provides communication and programming interfaces for integration with external equipment. Dual RS485 interfaces and USB programming support configuration and communication requirements, while optional Ethernet or gateway functions depend on the selected configuration.
Display, Control Inputs, and Outputs
The 7-inch color LCD provides access to operating information and configuration functions. A silicone keypad supports local operation, while multilingual display options improve usability for international projects.
The terminal includes eight digital switch inputs, nine relay outputs, and ten analog inputs. These connections provide flexibility for generator panel integration, external signal monitoring, and configured control functions. Engineers should verify the required signal types, electrical ratings, and interface assignments before finalizing the panel design.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product name | FPSS8607 | G50 Parallel Intelligent Terminal |
| Display | 7-inch color LCD |
| Processor | Dual 32-bit microprocessors |
| AC wiring configurations | 1P2W, 2P3W, 3P3W, 3P4W |
| AC voltage input range | 15–360 V phase voltage |
| Frequency | 50/60 Hz |
| Digital switch inputs | 8 |
| Relay outputs | 9 |
| Analog inputs | 10 |
| Communication | Dual RS485, USB programming |
| DC operating voltage | 8–35 V DC |
| Operating temperature | -25°C to +70°C |
| Dimensions | 280 × 180 × 90 mm |
| Panel cutout | 265 × 169 mm |
Applications and Integration
The FPSS8607 | G50 Parallel Intelligent Terminal is suitable for generator set manufacturers, control panel builders, and power equipment integrators requiring coordinated generator operation. Its synchronization, load-sharing, monitoring, and communication capabilities support applications where multiple generator sets must operate together under defined control conditions.
Before selection, buyers should confirm generator configuration, governor and AVR compatibility, engine communication requirements, protection settings, input/output assignments, and remote monitoring needs. Optional communication features should also be verified against the exact product configuration.
Why Choose Fortrust?
Fortrust develops generator control solutions for synchronization, parallel operation, electrical monitoring, and remote management. The FPSS8607 | G50 combines multiple control and diagnostic functions in one terminal, helping equipment manufacturers integrate essential generator management capabilities into their designs.
For OEM projects, confirming the required functions and interfaces early in the engineering process helps ensure that the terminal matches the intended application. Fortrust's product offering provides a foundation for configuring generator control solutions around specific operational and integration requirements.
